Tell our application team the dig depth, lift radius and shift pattern — we map CE-marked, EPA Tier 4 Final machines from a global dealer network so procurement closes without second-guessing the machine class.
Typical mid-range backhoe loader: 10–14 weeks ex-works plus a 3–5 day dealer commissioning checklist covering hydraulic flow, slew-bearing torque on the rear dipper and road-legal lighting. Telehandlers with specialized carriages add 2–3 weeks when factory options are specified.
Current crawler, wheeled and compact ranges leave the factory with DPF + SCR aftertreatment sized for EPA Tier 4 Final and EU Stage V. Each unit ships with NOx/PM validation logs so bid packages for municipal and highway work can attach emissions evidence without re-testing.
On compact track loaders and mid-size excavators, an OEM-equivalent track-group rebuild (shoes, idlers, sprockets, carrier rollers) typically lands at 18–22% of new-machine list when wear surveys confirm remaining bushing life. Quotes are issued after a pin-gauge inspection, not from a flat catalog number.
Contracted sites inside our dealer radius target mean-time-to-repair under 18 hours for hydraulic and electrical faults. Critical seals, filters and bucket teeth are pre-staged at regional hubs so technicians rarely wait overnight for the first-visit parts kit.
Use a telehandler when you need repeated material placement inside a 6–17 m envelope with frequent repositioning on unfinished ground. Choose a crane when pick-and-carry charts or tandem lifts demand certified SWL at long radius. Our solutions page walks through telehandler vs crane decisions with load-chart checkpoints.
Factory flush targets ISO 4406 18/16/13 on the main circuit before delivery. Dealers re-sample at the 250-hour first check so particle counts stay inside the band that protects load-sensing pumps and auxiliary valves on dusty utility sites.
Each band below answers a contractor pain point with a measurable control — fluid cleanliness, emissions calibration, rebuild windows and MTTR — not marketing adjectives.

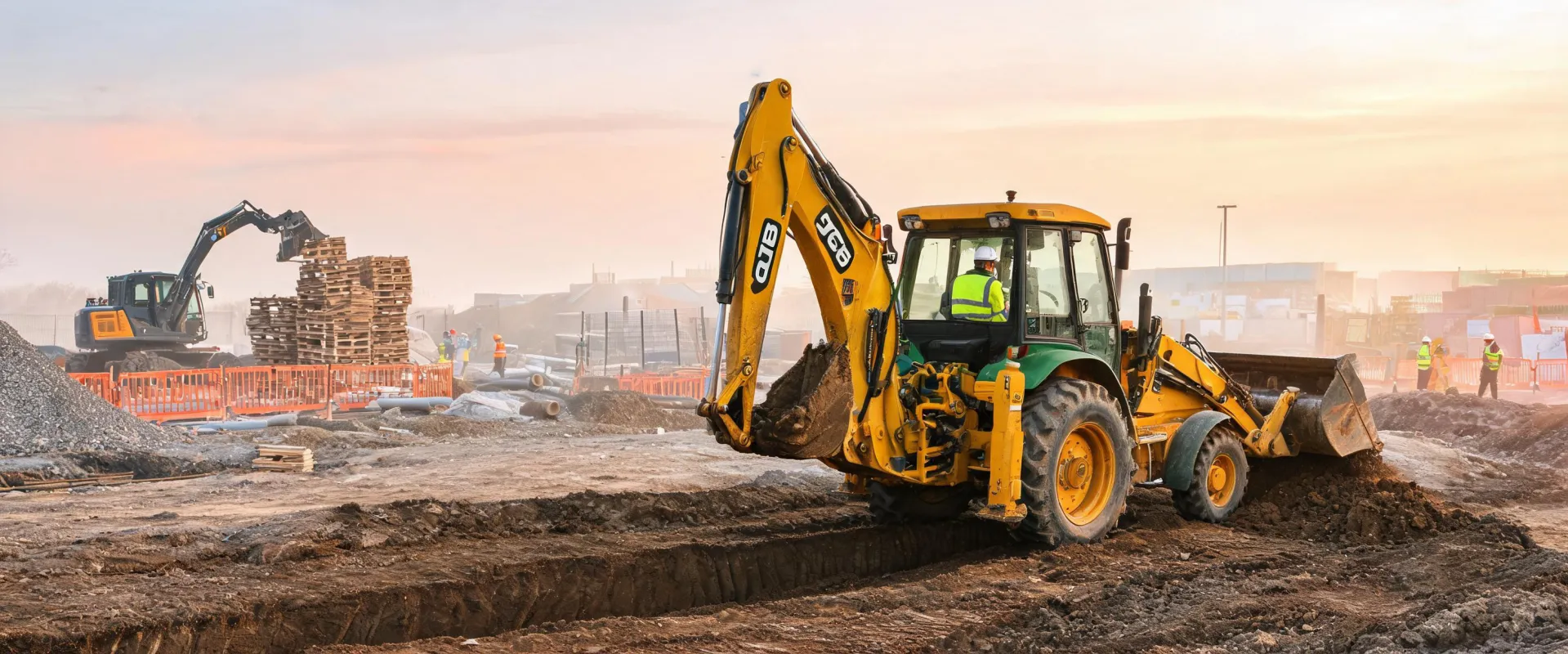

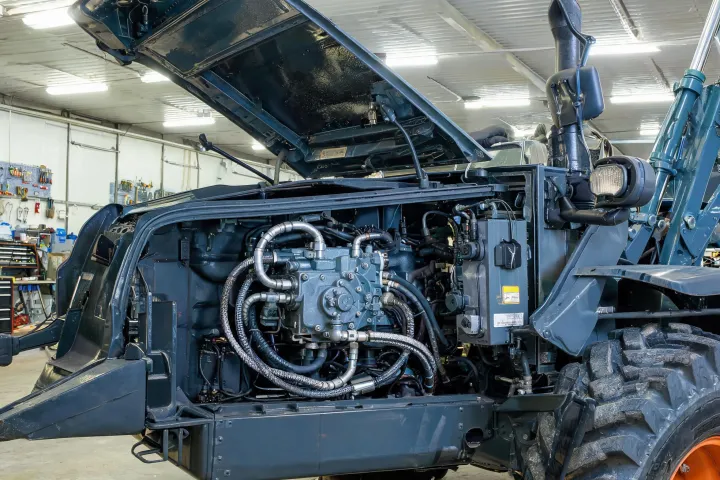

Closed-center pumps meter oil between the loader arms and rear excavator circuit so a backhoe can dig a trench without starving the front bucket crowd. Factory flush logs travel with the machine, and dealers sample return-line oil at 250 hours so particle counts stay inside ISO 4406 18/16/13 before valve spools stick on sandy utility corridors.

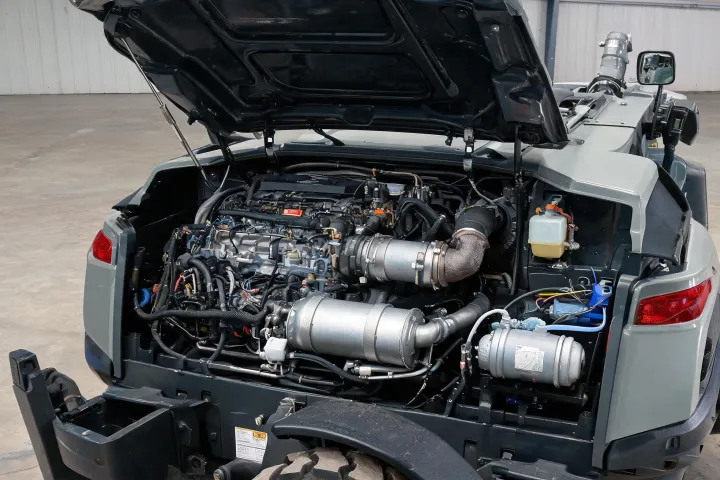

Aftertreatment packages combine DOC, DPF and SCR so telehandlers and wheel loaders meet EPA Tier 4 Final and EU Stage V without mid-shift derate. In-cab DEF alarms and ISO 8178 C1 cycle documentation give procurement teams auditable emissions evidence for airport, hospital and urban bid packages.

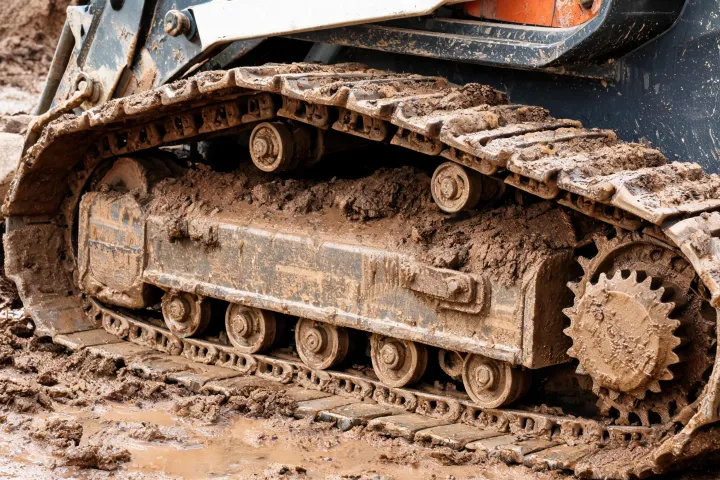

Track assemblies use sealed rollers and replaceable sprocket segments so compact track loaders stay productive on soft spoil piles longer between rebuilds. Fleet managers schedule shoe and idler swaps around the 8,000-hour mark instead of waiting for a mid-project throw that forces rental fill-ins.

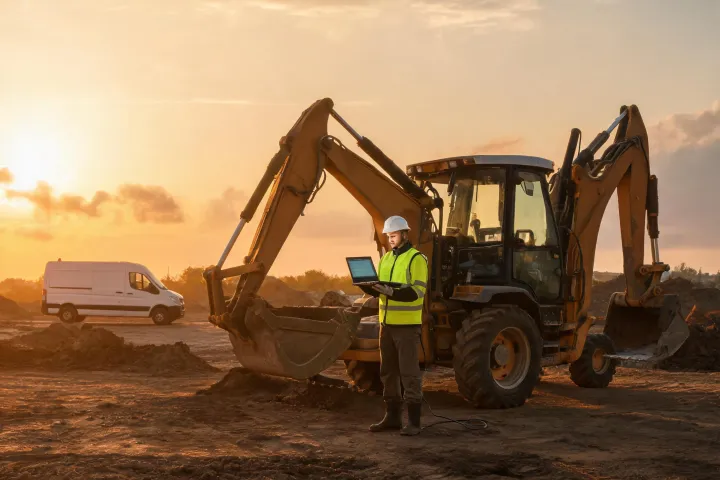

Authorized dealers stock high-turn hydraulic couplers, bucket teeth and filters so contracted sites see mean-time-to-repair under eighteen hours for common faults. Telematics fault codes pre-stage parts before the technician rolls — which is why equipment managers keep JCB backhoes on multi-site utility crews.
Figures below illustrate the data package dealers attach to RFQs. Final values are confirmed on the machine-specific load chart and emissions certificate.
| Engine & Emissions | |
|---|---|
| Engine class | Turbo-diesel · ~55–85 kW net (model dependent) |
| Tier 4 Final / Stage V | DPF + SCR aftertreatment with in-cab DEF alarm |
| Emissions evidence | ISO 8178 C1 cycle log shipped per unit |
| Hydraulic System | |
| Circuit type | Closed-center load-sensing · dual pump option |
| Factory cleanliness | ISO 4406 18/16/13 target before delivery |
| Auxiliary flow | Sized for breaker / auger / compactor attachments |
| Undercarriage / Chassis | |
| Axles & brakes | Limited-slip front · wet disc service brakes |
| Rebuild window | Track/tire wear survey at ~8,000 operating hours |
| Boom & Stick / Loader | |
| Rear dig envelope | Typical trench depth 4.3–5.7 m (model dependent) |
| Front loader | Parallel-lift geometry · quick-hitch compatible |
| Cab & Operator | |
| ROPS / FOPS | ISO-certified cab with HVAC and 360° visibility package |
| Controls | Selectable excavator / backhoe pattern · seat-mounted joysticks |
| Service & Documentation | |
| Certificates | CE Machinery Directive 2006/42/EC · ISO 9001 / 14001 / 45001 |
| Commissioning pack | Hydraulic baseline + emissions log + operator handbook |
"Commissioned three backhoe loaders across a utility corridor in nine days — dig-and-load cycles stayed inside our 18-month highway base schedule."
"Telehandler load chart re-checked on-site in four working days before cladding lifts. Zero downtime while the tower crane handled the heavy picks."
"Compact track undercarriage rebuilt at 8,100 hours — wear forecast from the dealer survey was within five percent of actual shoe life."
